Upto 15% diesel savings
Superior soil pulverization
Superior depth of cut
Superior porosity
Longer hours of operation
Lightweight with a strong frame structure
Waterproof Ducone sealing
Oil-bath lubricated rotor bearings
Side drive with gears
Half hitch pyramid for improved aesthetics and strength
Low fuel consumption
Induction-hardened components for longer life
All parts individually powder-coated
Utility gear pair – 1 pair, two applications
Lightweight yet optimally balanced with a strong frame structure
Waterproof Ducone sealing
Oil-bath lubricated rotor bearings
Side drive with gears
Half hitch pyramid for improved aesthetics and strength
Low fuel consumption
Induction-hardened components for longer life
All parts individually powder-coated
Utility gear pair – 1 pair, two applications

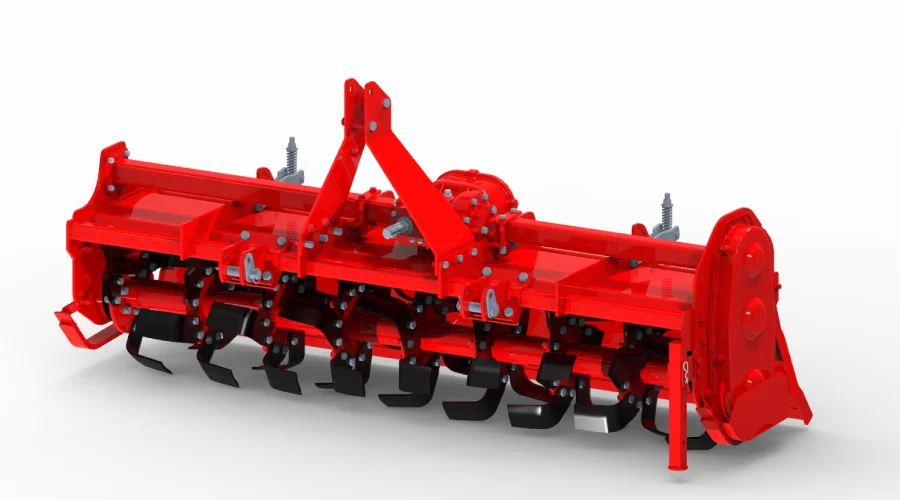

Optimum weight with a strong frame structure
Designed to perform in both dry and wet land conditions
Suitable for light to medium soil types
Waterproof Ducone sealing
Efficient operation in both wet and dry land
Available in regular and multi-blade combinations
Oil-bath lubricated rotor bearings
Side drive with gears
Half hitch pyramid for improved aesthetics and strength
Fuel-efficient performance
Induction-hardened components for longer life
All parts individually powder-coated
Utility gear pair – 1 pair, two applications

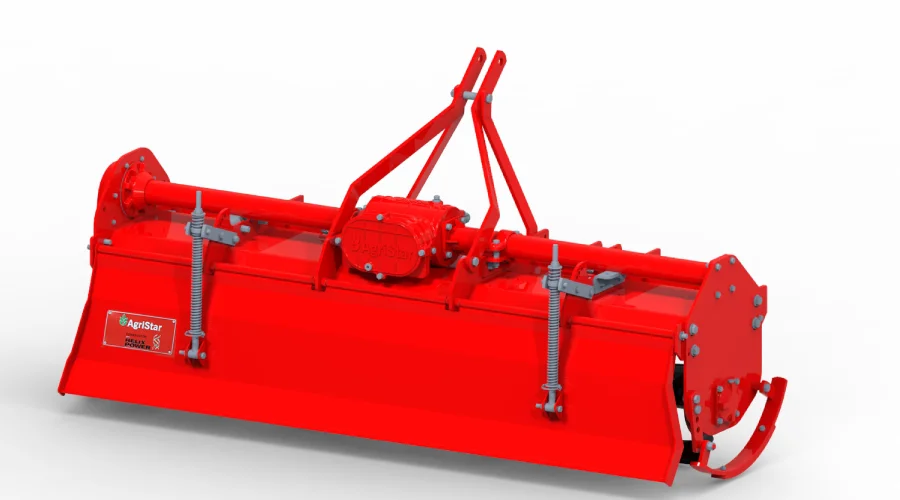

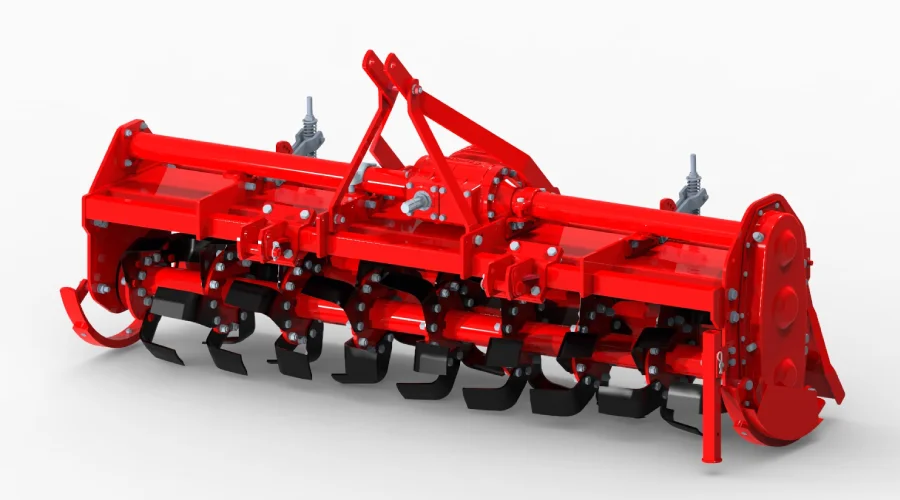

Heavyweight with a strong frame structure
Dust-proof multi-lip sealing
Capable of working in both wet and dry land conditions
Heavy-duty gearbox made with high-grade materials to withstand greater loads and vibrations
Suitable for deep tillage, especially for uprooting deep-rooted crops
Induction-hardened components for longer life
All parts individually powder-coated
Utility gear pair – 1 pair, two applications
Specially designed for inter-cultivation
Low maintenance and low fuel consumption
3-point hitch compatible with CAT-1 tractors
Easy to maneuver in row crops and orchards
Dust-proof seal
Heavy-duty hitch for better stability
Optimum weight to withstand heavy vibrations

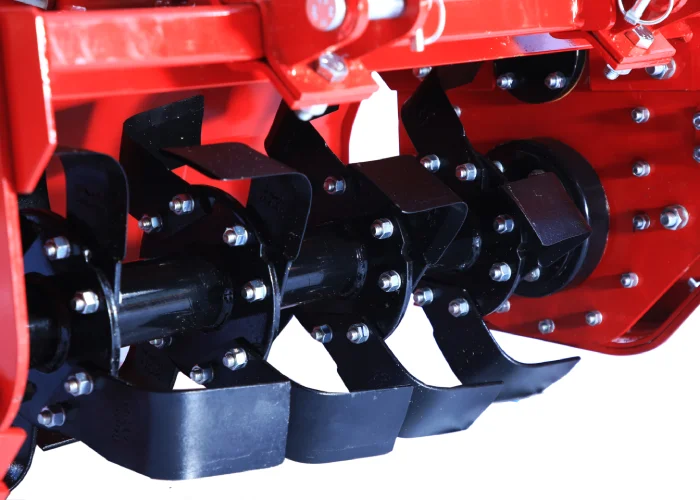

The innovative helix power design enhances the efficiency of soil processing, providing superior porosity and pulverization. This results in a finely tilled soil bed, ideal for planting.
Engineered for fuel efficiency, the Powervator helps farmers save on diesel costs, making it an economical choice for large-scale operations.
Achieve consistent soil depth across your field, ensuring uniformity and optimal conditions for crop growth.
The Powervator is capable of handling multiple tasks, from breaking and pulverizing to leveling, making it a versatile tool for any farming operation.
Whether you're working in wet or dry conditions, the Powervator delivers reliable and effective performance, adapting to different soil types and moisture levels.
| Variant | Wet Light | Wet | Wet & Dry | Dry | Mini |
|---|---|---|---|---|---|
| Description / Model | 4.75 Feet (714V) 5 Feet (815V) 6 Feet (917V) 7 Feet (1020V) |
4.75 Feet (714V) 5 Feet (815V) 5.5 Feet (916V) 6 Feet (917V) 7 Feet (1020V) 8 Feet (1122V) |
4 Feet (512DX) 5 Feet (615DX) (815DX) 5.5 Feet (717DX) (917DX) 6 Feet (718DX) (918DX) 7 Feet (820DX) (1020DX) 8 Feet (922DX) (1122DX) |
5 Feet (615DD) 6 Feet (718DD) 7 Feet (820DD) |
800 SS (408MS) 1000 SS (510MS) 1200 SS (612MS) 1200 MS (612MV) |
| No. of blades | 42/48/54/60 | 42/48/54/54/60/66 | 30/36/42/42/48/54 NA/48/54/54/60/66 | 36/42/48 | 16/20/24 |
| Blade type | L | L | L | L | L |
| PTO rpm | 540 | ||||
| Rotor rpm | 170 - 260 | 170 - 260 | 170 - 260 | 160 - 230 | SS - 214 MS - 170 - 260 |
| Weight* , kg | 307/317/335/358 | 355/375/390/405/430/455 | 347/385/410/420/450/480 | 430/465/500 | 195/210/240/250 |
| Primary Gear box | Single speed | Multi speed | Multi speed | Multi speed | Single speed / Multi speed (1200MS) |
| Secondary gearbox | Gear drive | ||||
| Sweep diameter , mm (Rotorshaft with blades) | 465 | 465 | 480/465 | 480 | 420 |
| Blade tip to mainframe clearance, mm | 25 | 25 | 35/45 | 40 - 55 | 50 |
| Rotor shaft seal | Mechanical face seal(Duo Cone) | Mechanical face seal(Duo Cone) | Mechanical face seal(Duo Cone) | Multi Lip | Multi Lip |
| Top mast | Hood type | Hood type | Hood type | Flat Type | Hood type |
| Description / Model | 4.75 Feet (714V) | 5 Feet (815V) | 6 Feet (917V) | 7 Feet (1020V) |
|---|---|---|---|---|
| Cutting width (mm) | 1374 | 1529 | 1754 | 1948 |
| Working depth (inch.) | 3 to 5 | |||
| No. of blades | 42 | 48 | 54 | 60 |
| Blade type | L/C | L/C | L/C | L/C |
| Overall Dimensions | ||||
| Length, mm | 1645 | 1785 | 2025 | 2270 |
| Width, mm | 840 | 840 | 840 | 840 |
| Height, mm | 1100 | 1100 | 1100 | 1100 |
| PTO rpm | 540 | |||
| Rotor rpm | 170 to 260 | |||
| Weight*, kg | 307 | 317 | 335 | 358 |
| Tractor power*, hp | 35-45 | 45-55 | 50-60 | 50-60 |
| Primary Gear box | Multi speed/Single speed | |||
| Secondary gearbox | Gear drive | |||
| Sweep diameter , mm (Rotorshaft with blades) | 465 | |||
| Blade tip to mainframe clearance, mm | 35 | |||
| Rotor shaft seal | Mechanical face seal(Duo Cone) | |||
| Top mast | Hood type | |||
| 3 point linkage | CAT II | |||
| Description / Model | 4.75 Feet (714V) | 5 Feet (815V) | 5.5 Feet (916V) | 6 Feet (917V) | 7 Feet (1020V) | 8 Feet (1122V) |
|---|---|---|---|---|---|---|
| Cutting width (mm) | 1374 | 1529 | 1700 | 1754 | 1948 | 2226 |
| Working depth (inch.) | 3 to 5 | |||||
| No. of blades | 42 | 48 | 54 | 54 | 60 | 66 |
| Blade type | L/C | L/C | L/C | L/C | L/C | L/C |
| Overall Dimensions | ||||||
| Length, mm | 1645 | 1785 | 1954 | 2025 | 2270 | 2520 |
| Width, mm | 840 | 840 | 840 | 840 | 840 | 840 |
| Height, mm | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| PTO rpm | 540 | |||||
| Rotor rpm | 170 to 260 | |||||
| Weight*, kg | 355 | 375 | 390 | 405 | 430 | 455 |
| Tractor power** , hp | 35-45 | 45-55 | 50-60 | 50-60 | 50-60 | 55-65 |
| Primary Gear box | Multi speed/Single speed | |||||
| Secondary gearbox | Gear drive | |||||
| Sweep diameter , mm (Rotorshaft with blades) | 465 | |||||
| Blade tip to mainframe clearance, mm | 35 | |||||
| Rotor shaft seal | Mechanical face seal(Duo Cone) | |||||
| Top mast | Hood type | |||||
| 3 point linkage | CAT II | |||||
| Description /Model |
4 Feet (512DX) | 5 Feet (615DX) | 5.5 Feet (717DX) |
6 Feet (718DX) | 7 Feet (820DX) | 8 Feet (922DX) |
5 Feet (815DX) | 5.5 Feet (917DX) |
6 Feet (918DX) | 7 Feet (1020DX) | 8 Feet (1122DX) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cutting width (mm) | 1190 | 1495 | 1662 | 1740 | 1985 | 2230 | 1529 | 1700 | 1754 | 1948 | 2226 |
| Working depth (inch.) | 4 to 6 | 3 to 5 | |||||||||
| No. of blades | 30 | 36 | 42 | 42 | 48 | 54 | 48 | 54 | 54 | 60 | 66 |
| Blade type | L/C | L/C | L/C | L/C | L/C | L/C | L/C | L/C | L/C | L/C | L/C |
| Overall Dimensions | |||||||||||
| Length, mm | 1486 | 1790 | 1970 | 2040 | 2285 | 2535 | 1790 | 1970 | 2040 | 2285 | 2535 |
| Width, mm | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 |
| Height, mm | 1115 | 1115 | 1115 | 1115 | 1115 | 1115 | 1115 | 1115 | 1115 | 1115 | 1115 |
| PTO rpm | 540 | ||||||||||
| Rotor rpm | 170 to 260 | ||||||||||
| Weight* , kg | 347 | 385 | 410 | 420 | 450 | 480 | 385 | 410 | 420 | 450 | 480 |
| Tractor power** , hp | 35-45 | 45-55 | 50-60 | 50-60 | 50-60 | 55-65 | 45-55 | 50-60 | 50-60 | 50-60 | 55-65 |
| Primary Gear box | Multi speed/Single speed | ||||||||||
| Secondary gearbox | Gear drive | ||||||||||
| Sweep diameter, mm (Rotorshaft with blades) | 480 | 465 | |||||||||
| Blade tip to mainframe clearance, mm | 35 | 45 | |||||||||
| Rotor shaft seal | Mechanical face seal(Duo Cone) | ||||||||||
| Top mast | Hood type | ||||||||||
| 3 point linkage | CAT I & CAT II | ||||||||||
| Description / Model | 5 Feet (615DD) | 6 Feet (718DD) | 7 Feet (820DD) |
|---|---|---|---|
| Cutting width (mm) | 1495 | 1740 | 1985 |
| Working depth (inch.) | 5 to 6 | ||
| No. of blades | 36 | 42 | 48 |
| Blade type | L/C | L/C | L/C |
| Overall Dimensions | |||
| Length, mm | 1800 | 2045 | 2290 |
| Width, mm | 840 | 840 | 840 |
| Height, mm | 1140 | 1140 | 1140 |
| PTO rpm | 540 | ||
| Rotor rpm | 160 to 230 | ||
| Weight* , kg | 430 | 465 | 500 |
| Tractor power** , hp | 40-55 | 50-65 | 55-70 |
| Primary Gear box | Multi speed | ||
| Secondary gearbox | Gear drive | ||
| Sweep diameter , mm (Rotorshaft with blades) | 480 | ||
| Blade tip to mainframe clearance, mm | Adjustable - 55 and 40 | ||
| Rotor shaft seal | Mulit lip seal | ||
| Top mast | Flat type | ||
| 3 point linkage | CAT II | ||

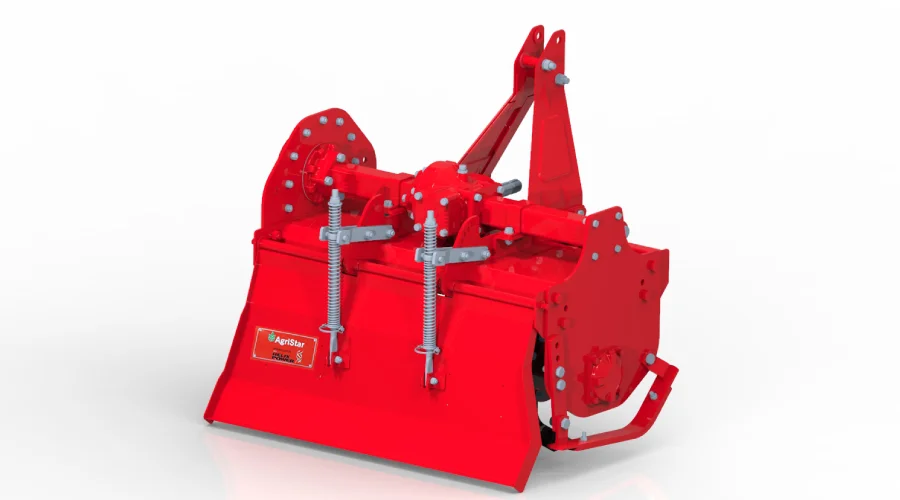

| Description / Model | 700 SS (407MS) | 800 SS (408MS) | 1000 SS (510MS) | 1200 SS (612MS) | 1200 MS (612MV) |
|---|---|---|---|---|---|
| Cutting width (mm) | 700 | 800 | 1000 | 1200 | 1200 |
| Working depth (inch.) | 3 to 4 | ||||
| No. of blades | 16 | 16 | 20 | 24 | 24 |
| Blade type | L | L | L | L | L |
| Overall Dimensions | |||||
| Length, mm | 900 | 1042 | 1210 | 1460 | 1460 |
| Width, mm | 785 | 785 | 785 | 785 | 785 |
| Height, mm | 965 | 965 | 965 | 1075 | 1075 |
| PTO rpm | 540 | ||||
| Rotor rpm | 214 | 170 to 260 | |||
| Weight* , kg | 185 | 195 | 210 | 240 | 250 |
| Tractor power** , hp | 15-20 | 15-20 | 15-25 | 25-30 | 25-30 |
| Primary Gear box | Single speed | Multi speed | |||
| Secondary gearbox | Gear drive | ||||
| Sweep diameter , mm (Rotorshaft with blades) | 420 | ||||
| Blade tip to mainframe clearance, mm | 50 | ||||
| Rotor shaft seal | Mulit lip seal | ||||
| Top mast | Hood type | ||||
| 3 point linkage | CAT I & CAT I 'N' | ||||
* Without Cardan shaft and Oil, * *Indicative
